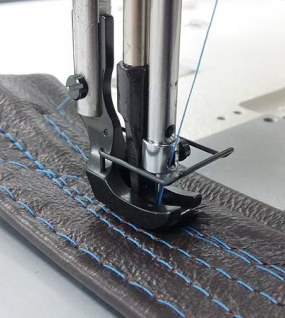

Juki LU-1508NS Single Needle Unison Feed Lock Stitch Machine with Vertical-axis Large Hook Includes Table and Servo Motor
- Product Code: LU-1508NS
The basic machine and its outstanding response to the sewing of heavy materials.
JUKI's unique feed mechanism promises excellent efficiency of feed. In addition to the standard models of 1-needle and 2-needle machines, other models intended for special purposes are available, including models for extra heavy materials and one having a thread trimmer. The machine is applicable to an extended range of heavy materials for industrial use, such as cargo handling belts and containers, as well as those for general use, such as car seats, sofas and bags, thereby contributing to both improved quality and increased productivity.
Assembled Table & Servo Motor
This Package includes a Fully Assembled Table and a Servo Motor.
Dual-Tension Mechanism
The 1-needle type machine has adopted a dual-tension mechanism, with which the machine can support high-tension sewing with thick thread. This means that the machine produces seams of excellent quality on a broader range of materials, extending from light to heavy weight.
For Heavy-Duty Materials
The standard 1-needle type machine that delivers the basic functions and performance best suited to the sewing of heavy materials.
The area around the needle entry is designed to be easily observed
Since the needle thread tension-release solenoid is fitted on the rear face of the machine head, the area around the needle entry and one-touch type reverse feed button is easily viewable. This substantially contributes to improved operability.
Improved Operability
- The stitch length can be easily selected by the stitch dial.
- The machine is provided with many improved features that offer enhanced operability such as an easy-to-observe area around the needle, placement of the bobbin winder on the front face of the machine arm, and a large handwheel ( 160).
- A knee-lifter mechanism is built in the bed. This reduces the pressure required to operate the knee-lifter and facilitates setup. (Machines equipped with automatic thread trimmer are excluded.)
- The machine is full-open-type top design makes it possible to fully open the top of the machine arm. Thanks to this design, adjusting works can be done without tilting the machine head.
- The machine is equipped as standard with a safety clutch for preventing hook breakage. Reset work can be done simply by pressing a button
Motor Options
Clutch motors operate at a fixed speed, typically between 1725 - 3450 rpm, depending on the type of machine. Servo Motors on the other hand are speed adjustable. The two major advantages of the Servo Motor are that you can control the speed of the motor and that the motor is completely silent when the pedal is not engaged.
Some other advantages of the Servo Motor include:
- They consume up to 90% less energy than clutch motors
- 1/3 lighter than clutch motors
- Reverse motor rotation with the flick of a switch
- Nothing to wear or adjust
- Adjusted speed remains the same no matter how hard the pedal is pressed
Most of our customers find that the sewing machine is much easier to control with a Servo motor because of the speed control. This is especially helpful for beginner sewers but also for projects that simply don't require high speed stitching.
Machine Specifications
| Specification | Details |
|---|---|
| Application | Heavy-Weight |
| Max. Sewing Speed | 2,500 Stitches per Minute |
| Max. Stitch Length | 9 mm (Forward / Backward) |
| Needle Bar Stroke | 38 mm |
| Presser Foot Lift (Hand) | 9 mm |
| Presser Foot Lift (Knee) | 18 mm |
| Alternating Vertical Movement | 2.5 – 8.5 mm |
| Thread Take-Up | Slide Type |
| Hook | Vertical-Axis Double-Capacity Hook |
| Needle System | 135×17 (at delivery) |
| Feed Mechanism | Rectangular Feed |
| Lubrication | Centralized Oil Wick Lubrication (Hook: Automatic) |
| Lubrication Oil | Juki New Defrix Oil No. 2 (Equivalent to ISO VG32) |
| Distance from Needle to Arm | 255 mm |
| Bed Size | 517 mm × 178 mm |
| Machine Head Weight | 42.5 kg |
- Brand: Juki
- Viewed: 25
- Availability: In Stock
$2,099.00
