A drop feed lockstitch post bed machine that uses precise bevel gears to transfer power from the main shaft to the hook shaft thereby providing smooth and quiet operation. A push button stitch regulator and manual reverse lever make this series easy to operate. Models GC24018 (1 needle) and GC24018-1 (2 needle) are equipped with a top roller foot to assist in material feeding. These machines are used extensively in the production of leather shoes, sport shoes, leather bags, gloves and similar items.
(This machine comes with a table and motor assembled)
Features
| Machine Type | Post-bed compound feed lockstitch machine |
| Application | Leather shoes, bags, gloves, sport shoes |
| Feed System | Top roller foot for better material feeding |
| Drive System | Bevel gear transmission for smooth & quiet operation |
| Control | Push-button stitch regulator |
| Reverse | Manual reverse lever |
| Structure | Post-bed design for curved & hard-to-reach areas |
| Lubrication | Manual lubrication |
Specifications
| Max Sewing Speed | 3000 RPM |
| Stitch Length | 0 – 4 mm |
| Needle Bar Stroke | 33.4 mm |
| Thread Take-Up Stroke | 61.5 mm |
| Presser Foot Lift | By hand: 7.2 mm / By knee: 10 mm |
| Needle | DP x 5 (#14 – #18) |
| Hook | Vertical rotary hook |
| Post Bed Height | 178 mm |
| Lubrication | Manual |
| Motor | 370W (clutch or servo motor) |
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder

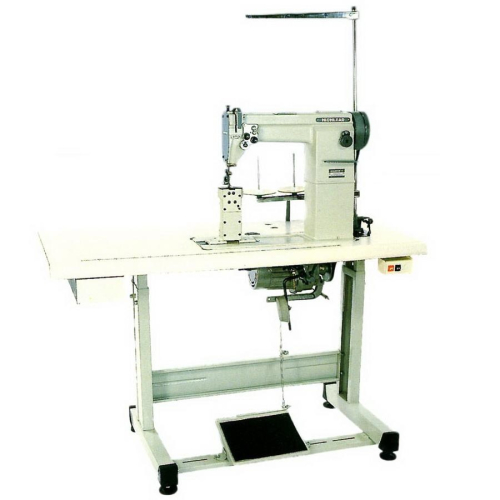

Highlead GC24018 Series Industrial Sewing Machines with Assembled Table and Servo Motor
- Product Code: GC24018
A drop feed lockstitch post bed machine that uses precise bevel gears to transfer power from the main shaft to the hook shaft thereby providing smooth and quiet operation. A push button stitch regulator and manual reverse lever make this series easy to operate. Models GC24018 (1 needle) and GC24018-1 (2 needle) are equipped with a top roller foot to assist in material feeding. These machines are used extensively in the production of leather shoes, sport shoes, leather bags, gloves and similar items.
(This machine comes with a table and motor assembled)
Features
| Machine Type | Post-bed compound feed lockstitch machine |
| Application | Leather shoes, bags, gloves, sport shoes |
| Feed System | Top roller foot for better material feeding |
| Drive System | Bevel gear transmission for smooth & quiet operation |
| Control | Push-button stitch regulator |
| Reverse | Manual reverse lever |
| Structure | Post-bed design for curved & hard-to-reach areas |
| Lubrication | Manual lubrication |
Specifications
| Max Sewing Speed | 3000 RPM |
| Stitch Length | 0 – 4 mm |
| Needle Bar Stroke | 33.4 mm |
| Thread Take-Up Stroke | 61.5 mm |
| Presser Foot Lift | By hand: 7.2 mm / By knee: 10 mm |
| Needle | DP x 5 (#14 – #18) |
| Hook | Vertical rotary hook |
| Post Bed Height | 178 mm |
| Lubrication | Manual |
| Motor | 370W (clutch or servo motor) |
- Brand: Highlead
- Viewed: 25
- Availability: In Stock
$1,089.00
