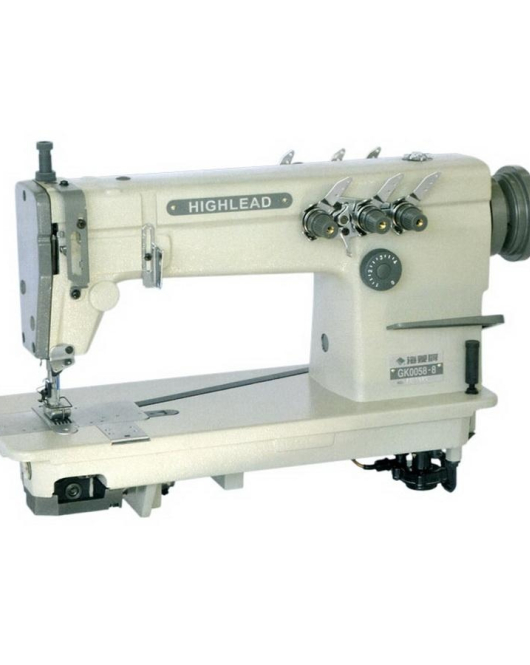

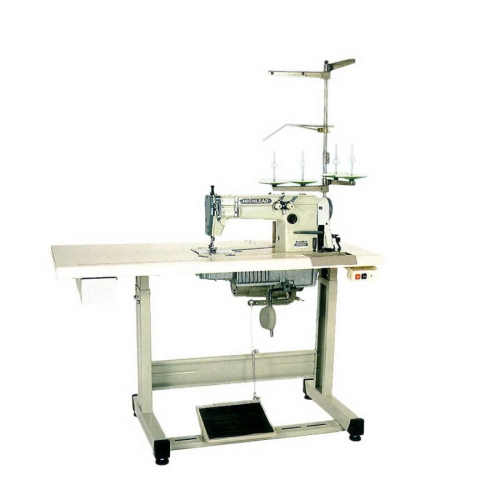

Highlead GK0058 Series Industrial Sewing Machines with Assembled Table and Servo Motor
- Product Code: GK0058
These automatically lubricated high speed chain stitch machines employ a link type feeding mechanism and are available in one, two or three needle subclasses with different gauge sizes and needle configurations. They can be used to perform many different functions such as joining operations, decorative stitching and seaming on a wide variety of materials and finished products.
GK0058-AC:
One needle chainlock edge cutter with stitch shortening
GK0058-AD:
One needle chainlock UBT for seaming
Features
| Machine Type | High-speed Chainstitch Industrial Sewing Machine |
| Series | GK0058 Series |
| Needle Options | Single, Double, or Three Needle Configurations |
| Stitch Type | Double-lock Chainstitch |
| Application | Garments, shirts, trousers, coats, underwear, bedding, decorative stitching |
| Feeding Mechanism | Link-type feed system |
| Operation | High-speed, smooth, and stable sewing |
| Lubrication | Automatic lubrication system |
| Noise Level | Balanced, low noise operation |
| Table & Motor | Assembled table with servo motor included |
Specifications
| Max Sewing Speed | Up to 5,000 S.P.M. |
| Stitch Length | 1.4 – 4 mm |
| Needle Type | TV x 7 (#9 – #21 depending on model) |
| Presser Foot Lift (Hand) | 5.5 mm |
| Presser Foot Lift (Knee) | 8 – 10 mm |
| Take-up System | Needle bar thread take-up |
| Looper System | Single or double looper (depending on model) |
| Lubrication System | Automatic oiling |
| Motor | Servo motor (energy saving & adjustable speed) |
| Power Supply | 220V |
Model Variants
| GK0058-A | Single needle chainstitch |
| GK0058 | Standard twin needle (6.4 mm gauge) |
| GK0058-1 / -2 | Twin needle (various gauges) |
| GK0058-3 | Tandem twin needle |
| GK0058-8 | Three needle chainstitch |
| GK0058-H | Medium-heavy material version |
- Brand: Highlead
- Viewed: 26
- Availability: In Stock
$1,299.00
