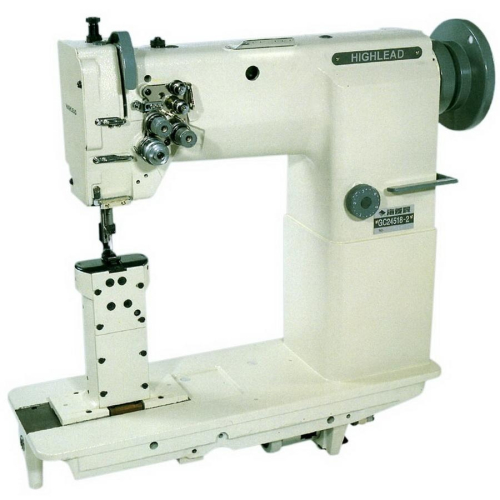

This needle feed post bed machine forms a double lockstitch in either single or double needle versions. A drive belt is used to drive the arm shaft and hook shaft. A dial type stitch regulator and reverse feeding lever make operating the machine easy. The 7 inch post bed allows ample working space to sew hard to reach areas, while the needle feed mechanism prevents material from slipping thereby ensuring excellent stitch quality. It can be used on such items as uniforms, slippers, soft sided shoes and similar articles.

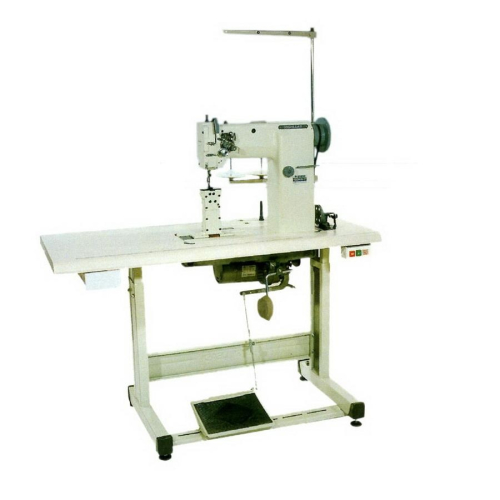

(This machine comes with a table and motor assembled)
Features
| Machine Type | Industrial Lockstitch Sewing Machine |
| Series | GC24518 Series |
| Motor | Servo Motor (quiet & energy-saving) |
| Table | Assembled table included |
| Application | Heavy-duty materials (leather, upholstery, canvas) |
| Feed Mechanism | Compound feed (walking foot) |
| Operation | Smooth, stable, and high torque performance |
| Lubrication | Automatic lubrication system |
| Noise & Vibration | Low noise and low vibration |
Specifications
| Max Sewing Speed | Up to 2,000 S.P.M. |
| Stitch Length | Up to 9 mm |
| Needle System | 135 x 17 / 135 x 16 |
| Presser Foot Lift (Hand) | Approx. 8 mm |
| Presser Foot Lift (Knee) | Approx. 16 mm |
| Hook Type | Large capacity rotary hook |
| Feed Dog | Heavy-duty feed system |
| Lubrication System | Automatic oiling |
| Power Supply | 220V (Servo Motor) |
| Table & Stand | Heavy-duty industrial stand included |
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder

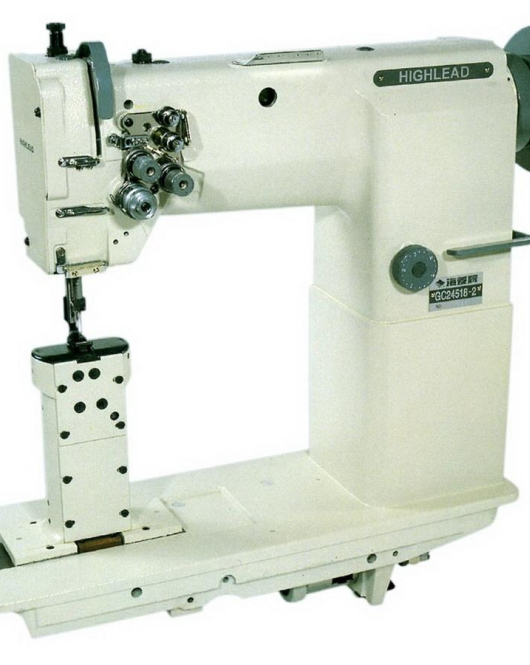

Highlead GC24518 Series Industrial Sewing Machines with Assembled Table and Servo Motor
- Product Code: GC24518
This needle feed post bed machine forms a double lockstitch in either single or double needle versions. A drive belt is used to drive the arm shaft and hook shaft. A dial type stitch regulator and reverse feeding lever make operating the machine easy. The 7 inch post bed allows ample working space to sew hard to reach areas, while the needle feed mechanism prevents material from slipping thereby ensuring excellent stitch quality. It can be used on such items as uniforms, slippers, soft sided shoes and similar articles.
(This machine comes with a table and motor assembled)
Features
| Machine Type | Industrial Lockstitch Sewing Machine |
| Series | GC24518 Series |
| Motor | Servo Motor (quiet & energy-saving) |
| Table | Assembled table included |
| Application | Heavy-duty materials (leather, upholstery, canvas) |
| Feed Mechanism | Compound feed (walking foot) |
| Operation | Smooth, stable, and high torque performance |
| Lubrication | Automatic lubrication system |
| Noise & Vibration | Low noise and low vibration |
Specifications
| Max Sewing Speed | Up to 2,000 S.P.M. |
| Stitch Length | Up to 9 mm |
| Needle System | 135 x 17 / 135 x 16 |
| Presser Foot Lift (Hand) | Approx. 8 mm |
| Presser Foot Lift (Knee) | Approx. 16 mm |
| Hook Type | Large capacity rotary hook |
| Feed Dog | Heavy-duty feed system |
| Lubrication System | Automatic oiling |
| Power Supply | 220V (Servo Motor) |
| Table & Stand | Heavy-duty industrial stand included |
- Brand: Highlead
- Viewed: 24
- Availability: In Stock
$1,399.00
