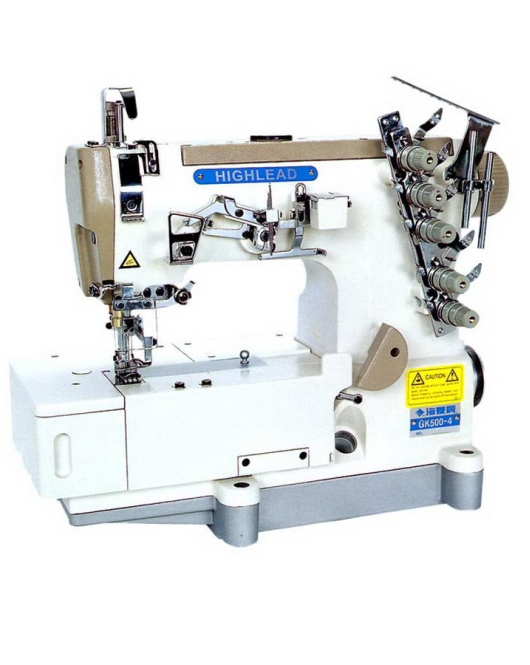

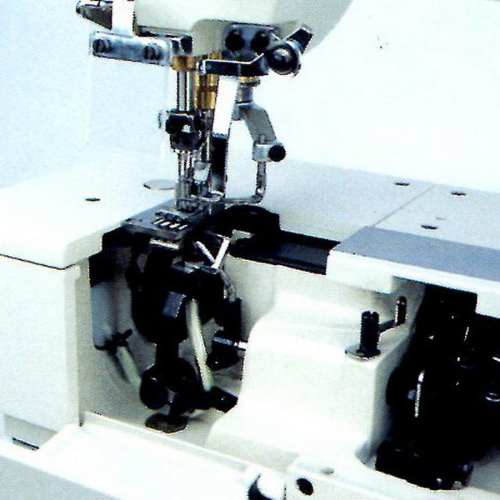

Model GK500-4 is Highlead's newest style 3 needle 5 thread differential feed flat bed top and bottom cover stitch machine. The machine is very smooth and quiet running being automatically lubricated by a fully sealed gear pump that circulates oil throughout the machine and its moving parts. Needle bearings and timing belts are used in critical driving positions. Easy adjustment of the bottom differential feeding system, an easy to use knob type stitch regulator and easy machine threading are but a few of the machines many features. It is used in the production of a variety of knit goods such as underwear, sportswear, T shirts and polo shirts and is capable of covering seams as well as being used as a decorative stitch on the above mentioned and similar articles.
GK500-4:
Three needle flat bed top and bottom cover stitch
GK500-401:
Three needle top and bottom cover stitch for binding operations
GK500-4D:
Three needle flat bed top and bottom cover stitch UBT

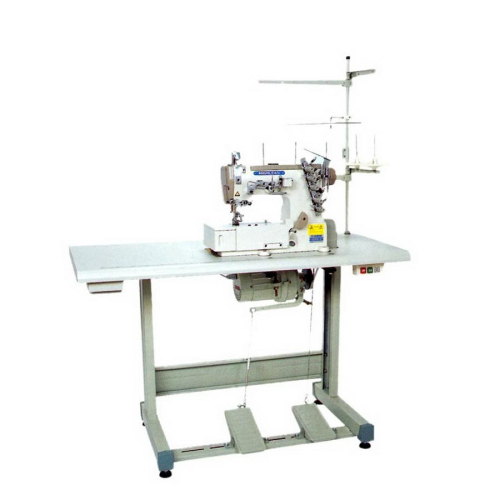

(This machine comes with a table and motor assembled)
Features
| Machine Type | Industrial Overlock Sewing Machine |
| Series | GK500 Series |
| Motor | Servo Motor (quiet & energy saving) |
| Table | Assembled table included |
| Operation | High-speed, smooth, and stable performance |
| Application | Suitable for light to medium fabrics |
| Lubrication | Automatic lubrication system |
| Noise Level | Low noise & low vibration |
| Efficiency | Energy-saving operation compared to clutch motors |
Specifications
| Max Sewing Speed | Up to 5,500 S.P.M. |
| Number of Threads | 3 / 4 / 5 Thread Options |
| Stitch Type | Overlock Stitch |
| Stitch Length | Adjustable |
| Differential Feed Ratio | Adjustable |
| Needle Type | DCx27 |
| Presser Foot Lift | Standard Industrial Lift |
| Lubrication System | Automatic Oiling |
| Power Supply | 220V (Servo Motor) |
| Table & Stand | Heavy-duty industrial stand included |
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder
Highlead GK500 Series Industrial Sewing Machines with Assembled Table and Servo Motor
- Product Code: GK500
Model GK500-4 is Highlead's newest style 3 needle 5 thread differential feed flat bed top and bottom cover stitch machine. The machine is very smooth and quiet running being automatically lubricated by a fully sealed gear pump that circulates oil throughout the machine and its moving parts. Needle bearings and timing belts are used in critical driving positions. Easy adjustment of the bottom differential feeding system, an easy to use knob type stitch regulator and easy machine threading are but a few of the machines many features. It is used in the production of a variety of knit goods such as underwear, sportswear, T shirts and polo shirts and is capable of covering seams as well as being used as a decorative stitch on the above mentioned and similar articles.
GK500-4:
Three needle flat bed top and bottom cover stitch
GK500-401:
Three needle top and bottom cover stitch for binding operations
GK500-4D:
Three needle flat bed top and bottom cover stitch UBT
(This machine comes with a table and motor assembled)
Features
| Machine Type | Industrial Overlock Sewing Machine |
| Series | GK500 Series |
| Motor | Servo Motor (quiet & energy saving) |
| Table | Assembled table included |
| Operation | High-speed, smooth, and stable performance |
| Application | Suitable for light to medium fabrics |
| Lubrication | Automatic lubrication system |
| Noise Level | Low noise & low vibration |
| Efficiency | Energy-saving operation compared to clutch motors |
Specifications
| Max Sewing Speed | Up to 5,500 S.P.M. |
| Number of Threads | 3 / 4 / 5 Thread Options |
| Stitch Type | Overlock Stitch |
| Stitch Length | Adjustable |
| Differential Feed Ratio | Adjustable |
| Needle Type | DCx27 |
| Presser Foot Lift | Standard Industrial Lift |
| Lubrication System | Automatic Oiling |
| Power Supply | 220V (Servo Motor) |
| Table & Stand | Heavy-duty industrial stand included |
- Brand: Highlead
- Viewed: 26
- Availability: In Stock
$1,369.00
