This standard size vertical hook walking foot (triple transport) cylinder bed machine is a new model with industry accepted features and styling. It features a sliding lever thread take up, a lever type stitch regulator and inside belt to drive the top shaft and hook shaft at ample speed. It has a high presser foot lift thereby making it a capable piece of equipment in the construction of suitcases, soft sided luggage, seat cushions and binding operations on luggage, tote bags and other similar articles.
(This machine comes with a table and motor assembled)
| Machine Type | Cylinder Bed Compound Feed Lockstitch (Walking Foot) |
|---|---|
| Feed Mechanism | Compound Feed (Walking Foot + Needle Feed + Bottom Feed) |
| Max. Sewing Speed | 2,000 – 2,200 Stitches per Minute |
| Stitch Length | 0 ~ 5 mm |
| Needle Bar Stroke | 33.2 ~ 33.4 mm |
| Thread Take-up Stroke | 61.5 mm |
| Presser Foot Lift | 8 mm (by hand), 14 mm (by knee) |
| Presser Foot Type | Alternating Walking Foot |
| Feed Dog | Single Row |
| Needle System | DP x 17 (#18 ~ #22) |
| Cylinder Bed Diameter | 62 mm |
| Hook Type | Vertical Axis Hook |
| Lubrication | Manual |
| Motor | Servo Motor 220V (depending on setup) |
| Machine Setup | Complete with Table & Motor (Assembled) |
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder

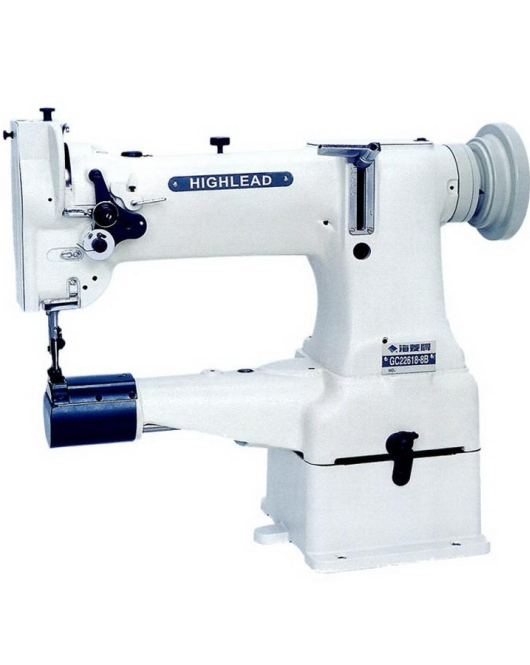

Highlead GC22618-8B Industrial Sewing Machines with Assembled Table and Servo Motor
- Product Code: GC22618-8B
This standard size vertical hook walking foot (triple transport) cylinder bed machine is a new model with industry accepted features and styling. It features a sliding lever thread take up, a lever type stitch regulator and inside belt to drive the top shaft and hook shaft at ample speed. It has a high presser foot lift thereby making it a capable piece of equipment in the construction of suitcases, soft sided luggage, seat cushions and binding operations on luggage, tote bags and other similar articles.
(This machine comes with a table and motor assembled)
| Machine Type | Cylinder Bed Compound Feed Lockstitch (Walking Foot) |
|---|---|
| Feed Mechanism | Compound Feed (Walking Foot + Needle Feed + Bottom Feed) |
| Max. Sewing Speed | 2,000 – 2,200 Stitches per Minute |
| Stitch Length | 0 ~ 5 mm |
| Needle Bar Stroke | 33.2 ~ 33.4 mm |
| Thread Take-up Stroke | 61.5 mm |
| Presser Foot Lift | 8 mm (by hand), 14 mm (by knee) |
| Presser Foot Type | Alternating Walking Foot |
| Feed Dog | Single Row |
| Needle System | DP x 17 (#18 ~ #22) |
| Cylinder Bed Diameter | 62 mm |
| Hook Type | Vertical Axis Hook |
| Lubrication | Manual |
| Motor | Servo Motor 220V (depending on setup) |
| Machine Setup | Complete with Table & Motor (Assembled) |
- Brand: Highlead
- Viewed: 27
- Availability: In Stock
$1,595.00
