This large vertical hook automatically lubricated compound feed machine forms a lockstitch using the vertical hook and sliding bars for thread take up. It incorporates needle bearings for the arm shaft and hook shaft and in combination with the drive belt and plunger pump lubrication system, quiet sewing at higher speeds is attained. A safety clutch is standard equipment helping to prevent hook damage. This machine is used on such products as car seat cushions, safety belts, air bags, tents and parachutes.
Model GC20618-1-D is available as an automatic undertrimming machine with added functions for increased productivity.
A 1/2, 3/4 or 3/8 in the model number will indicate the needle gauge size
(This machine comes with a table and motor assembled)
| Machine Type | Flat Bed Compound Feed Lockstitch (Walking Foot) |
|---|---|
| Needle | Single / Double Needle (depending on subclass) |
| Feed Mechanism | Compound Feed (Walking Foot + Needle Feed + Bottom Feed) |
| Max. Sewing Speed | 2,000 Stitches per Minute |
| Stitch Length | 0 ~ 9 mm |
| Needle Bar Stroke | 36 mm |
| Thread Take-up Stroke | 74.5 mm |
| Presser Foot Lift | 8 mm (by hand), 16 mm (by knee) |
| Needle System | DP x 17 (#18 ~ #23) |
| Hook Type | Large Vertical Axis Hook (Auto Lubricated) |
| Lubrication | Automatic (Pump System) |
| Safety Device | Safety Clutch Equipped |
| Motor | Servo Motor 220V 550W (depending on subclass) |
| Machine Setup | Complete with Table & Motor (Assembled) |
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder

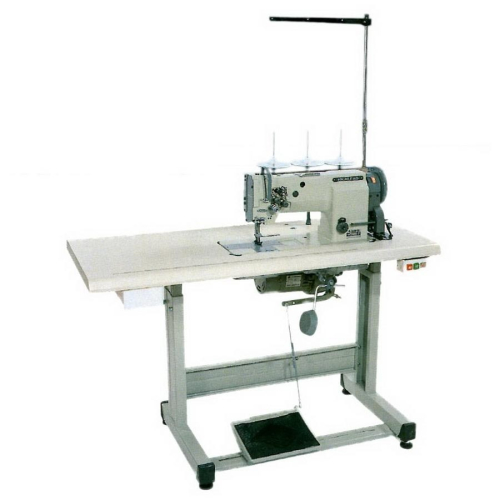

Highlead GC20618 Series Industrial Sewing Machines with Assembled Table and Servo Motor
- Product Code: GC20618
This large vertical hook automatically lubricated compound feed machine forms a lockstitch using the vertical hook and sliding bars for thread take up. It incorporates needle bearings for the arm shaft and hook shaft and in combination with the drive belt and plunger pump lubrication system, quiet sewing at higher speeds is attained. A safety clutch is standard equipment helping to prevent hook damage. This machine is used on such products as car seat cushions, safety belts, air bags, tents and parachutes.
Model GC20618-1-D is available as an automatic undertrimming machine with added functions for increased productivity.
A 1/2, 3/4 or 3/8 in the model number will indicate the needle gauge size
(This machine comes with a table and motor assembled)
| Machine Type | Flat Bed Compound Feed Lockstitch (Walking Foot) |
|---|---|
| Needle | Single / Double Needle (depending on subclass) |
| Feed Mechanism | Compound Feed (Walking Foot + Needle Feed + Bottom Feed) |
| Max. Sewing Speed | 2,000 Stitches per Minute |
| Stitch Length | 0 ~ 9 mm |
| Needle Bar Stroke | 36 mm |
| Thread Take-up Stroke | 74.5 mm |
| Presser Foot Lift | 8 mm (by hand), 16 mm (by knee) |
| Needle System | DP x 17 (#18 ~ #23) |
| Hook Type | Large Vertical Axis Hook (Auto Lubricated) |
| Lubrication | Automatic (Pump System) |
| Safety Device | Safety Clutch Equipped |
| Motor | Servo Motor 220V 550W (depending on subclass) |
| Machine Setup | Complete with Table & Motor (Assembled) |
- Brand: Highlead
- Viewed: 27
- Availability: In Stock
$0.00
