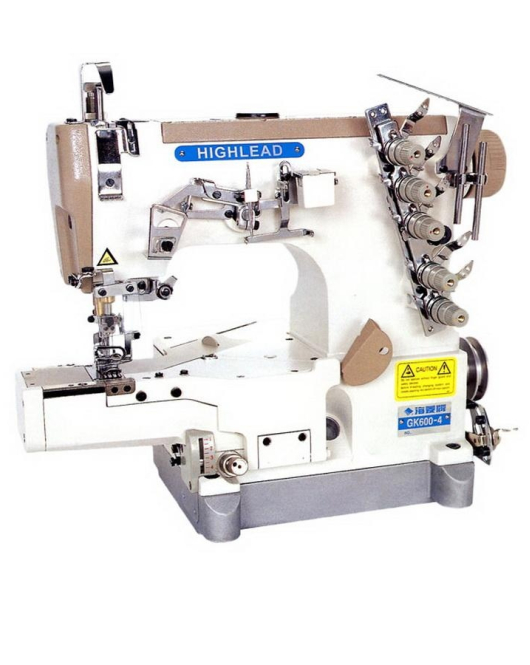

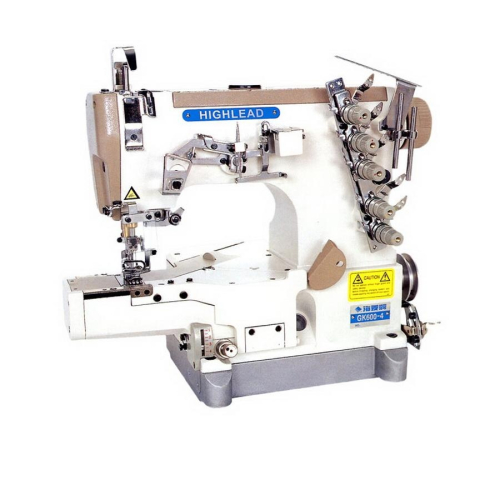

Model GK600-4 is Highlead's newest style 3 needle 5 thread differential feed cylinder bed top and bottom cover stitch machine. Like flat bed model GK500-4 the machine is very smooth and quiet running being automatically lubricated by a fully sealed gear pump that circulates oil throughout the machine and its moving parts. Needle bearings and timing belts are used in critical driving positions. A silicon oil thread lubricator, needle cooler, and knob type stitch regulator are but a few of the standard features. The machine is used extensively in the construction of knit garments and is best suited for such operations as bottom hemming, collar binding, elastic waistband attaching and similar operations with small areas to join where a cylinder bed machine is better suited to facilitate material handling and ease of access.
GK600-4:
Three needle cylinder bed top and bottom cover stitch
GK600-4D:
Three needle cylinder bed top and bottom cover stitch UBT
(This machine comes with a table and motor assembled)
| Machine Type | Cylinder Bed Interlock Chainstitch (Coverstitch) |
|---|---|
| Needle | 2 or 3 Needles |
| Number of Threads | 3 or 5 Threads |
| Max. Sewing Speed | 6,000 Stitches per Minute |
| Stitch Length | 4.5 mm |
| Stitch Width | 4.8 / 5.6 / 6.4 mm |
| Differential Feed Ratio | 0.6 – 1.3 |
| Presser Foot Lift | 5.1 mm |
| Needle Gauge | 5.6 mm (Standard), 6.4 mm (Optional) |
| Needle System | UY128GAS (#9 ~ #10) |
| Lubrication | Automatic (Fully sealed oil system) |
| Motor | Servo Motor 220V 550W (depending on subclass) |
| Machine Setup | Complete with Table & Motor (Assembled) |
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder

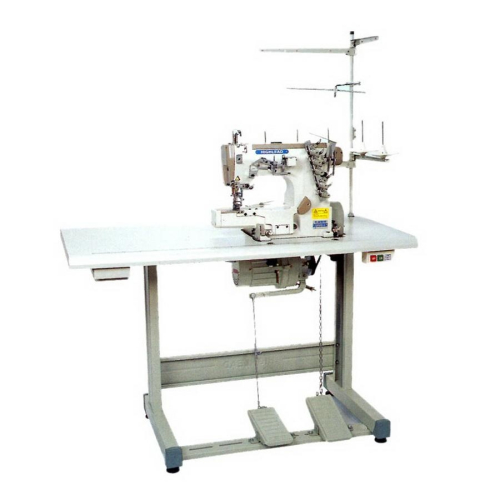

Highlead GK600 Series Industrial Sewing Machines with Assembled Table and Servo Motor
- Product Code: GK600-4D
Model GK600-4 is Highlead's newest style 3 needle 5 thread differential feed cylinder bed top and bottom cover stitch machine. Like flat bed model GK500-4 the machine is very smooth and quiet running being automatically lubricated by a fully sealed gear pump that circulates oil throughout the machine and its moving parts. Needle bearings and timing belts are used in critical driving positions. A silicon oil thread lubricator, needle cooler, and knob type stitch regulator are but a few of the standard features. The machine is used extensively in the construction of knit garments and is best suited for such operations as bottom hemming, collar binding, elastic waistband attaching and similar operations with small areas to join where a cylinder bed machine is better suited to facilitate material handling and ease of access.
GK600-4:
Three needle cylinder bed top and bottom cover stitch
GK600-4D:
Three needle cylinder bed top and bottom cover stitch UBT
(This machine comes with a table and motor assembled)
| Machine Type | Cylinder Bed Interlock Chainstitch (Coverstitch) |
|---|---|
| Needle | 2 or 3 Needles |
| Number of Threads | 3 or 5 Threads |
| Max. Sewing Speed | 6,000 Stitches per Minute |
| Stitch Length | 4.5 mm |
| Stitch Width | 4.8 / 5.6 / 6.4 mm |
| Differential Feed Ratio | 0.6 – 1.3 |
| Presser Foot Lift | 5.1 mm |
| Needle Gauge | 5.6 mm (Standard), 6.4 mm (Optional) |
| Needle System | UY128GAS (#9 ~ #10) |
| Lubrication | Automatic (Fully sealed oil system) |
| Motor | Servo Motor 220V 550W (depending on subclass) |
| Machine Setup | Complete with Table & Motor (Assembled) |
- Brand: Highlead
- Viewed: 26
- Availability: In Stock
$1,675.00
