This model is designed with a small radius cylinder bed and a compound feed mechanism. The small radius cylinder bed allows for easy access to sew on such items as thin leather garments, shoes, slippers, and for binding on seat cushions and similar operations. It is available in three subclasses to meet different requirements.
GC2698-2
One needle small cylinder arm walking foot with horizontal hook, reverse and eliptical feed motion.
GC2698-1B
One needle small cylinder arm walking foot with large horizontal hook and reverse.
GC2698-1D
One needle small cylinder arm walking foot UBT machine with horizontal hook and reverse.
(This machine comes with a table and motor assembled)
| Machine Type | Cylinder Bed Compound Feed Lockstitch |
|---|---|
| Needle | Single Needle |
| Feed Mechanism | Compound Feed (Walking Foot + Needle Feed + Bottom Feed) |
| Max. Sewing Speed | 2,400 Stitches per Minute |
| Stitch Length | 0 ~ 6 mm |
| Needle Bar Stroke | 33.4 mm |
| Thread Take-up Stroke | 59.6 mm |
| Presser Foot Lift | 5 mm (by hand), 16 mm (by knee) |
| Presser Foot Alternating Height | 5 mm |
| Needle System | DP x 17 / DP x 35LR (#14 ~ #18) |
| Cylinder Bed Diameter | 47 mm |
| Lubrication | Manual |
| Motor | Servo Motor 220V 550W (depending on subclass) |
| Machine Setup | Complete with Table & Motor (Assembled) |
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder

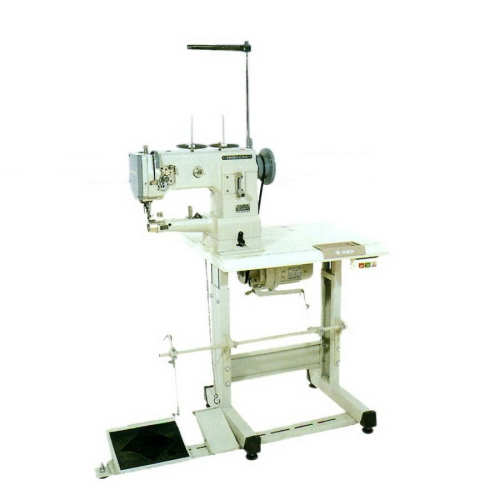

Highlead GC2698 Series Industrial Sewing Machines with Assembled Table and Servo Motor
- Product Code: GC2698
This model is designed with a small radius cylinder bed and a compound feed mechanism. The small radius cylinder bed allows for easy access to sew on such items as thin leather garments, shoes, slippers, and for binding on seat cushions and similar operations. It is available in three subclasses to meet different requirements.
GC2698-2
One needle small cylinder arm walking foot with horizontal hook, reverse and eliptical feed motion.
GC2698-1B
One needle small cylinder arm walking foot with large horizontal hook and reverse.
GC2698-1D
One needle small cylinder arm walking foot UBT machine with horizontal hook and reverse.
(This machine comes with a table and motor assembled)
| Machine Type | Cylinder Bed Compound Feed Lockstitch |
|---|---|
| Needle | Single Needle |
| Feed Mechanism | Compound Feed (Walking Foot + Needle Feed + Bottom Feed) |
| Max. Sewing Speed | 2,400 Stitches per Minute |
| Stitch Length | 0 ~ 6 mm |
| Needle Bar Stroke | 33.4 mm |
| Thread Take-up Stroke | 59.6 mm |
| Presser Foot Lift | 5 mm (by hand), 16 mm (by knee) |
| Presser Foot Alternating Height | 5 mm |
| Needle System | DP x 17 / DP x 35LR (#14 ~ #18) |
| Cylinder Bed Diameter | 47 mm |
| Lubrication | Manual |
| Motor | Servo Motor 220V 550W (depending on subclass) |
| Machine Setup | Complete with Table & Motor (Assembled) |
- Brand: Highlead
- Viewed: 31
- Availability: In Stock
$1,699.00
