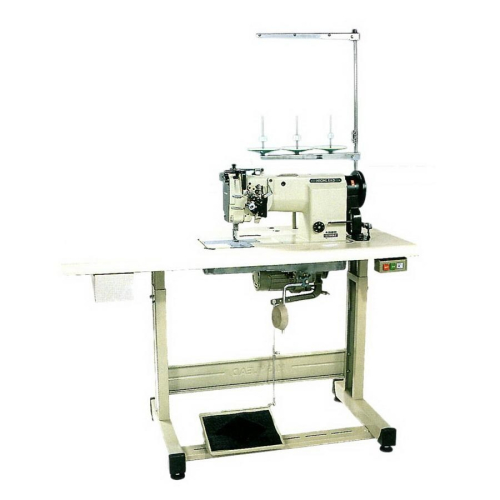

This is a split needle bar machine built on the GC20518 platform that is available in standard size (model GC20528-M) and large capacity hooks (model GC20528-B). It uses two vertical axis rotating hooks and a sliding bar take up to produce two lines of double lock stitch. Automatic lubrication in combination with the drive belt and plumber pump mechanism ensure smooth and quiet operation. The arm shaft and hook shaft are supported by ball bearings. A knob type stitch regulator and lever type reverse feeding mechanism make the machine easy to operate. The split needle bar can be engaged or disengaged mechanically. A bobbin thread pull back spring in the bobbin case guarantees the synchronization of the needle thread and bobbin thread creating seamless stitching. It can be used to produce overalls, jeans, uniforms and for decorative sewing on bags.
For those seeking additional functions and increased productivity model numbers GC20528-M-D and GC20528-B-D are available as undertrimming machines.
(This machine comes with a table and motor assembled)
| Specification | GC20528-B | GC20528-B-D |
|---|---|---|
| Application | Medium Heavy Weight | Medium Heavy Weight |
| Max. Sewing Speed | 3000 RPM | 3000 RPM |
| Stitch Length | 0 – 7 mm | 0 – 7 mm |
| Needle Bar Stroke | 33.4 mm | 33.4 mm |
| Presser Foot Lift (Hand) | 7 mm | 7 mm |
| Presser Foot Lift (Knee) | 13 mm | 13 mm |
| Needle Type | DB × 5 (#18 – #22) | DB × 5 (#18 – #22) |
| Hook | Large Hook with Bobbin Thread Pull-back | Large Hook with Bobbin Thread Pull-back (Thread Trimming) |
| Lubrication | Auto Lubricated | Auto Lubricated |
| Thread Trimmer | N/A | Yes |
| Motor | 370W Clutch Motor | Speed Adjustment Motor |
| Standard / Optional Gauge | Standard: 6.4 mm Optional: 3.2 / 4 / 4.8 / 5.6 / 8 / 9.5 / 12.7 / 15.8 / 19 mm | Standard: 6.4 mm Optional: 3.2 / 4 / 4.8 / 5.6 / 8 / 9.5 / 12.7 / 15.8 / 19 mm |
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder
Highlead GC20528 Series Industrial Sewing Machines with Assembled Table and Servo Motor
- Product Code: GC20528
This is a split needle bar machine built on the GC20518 platform that is available in standard size (model GC20528-M) and large capacity hooks (model GC20528-B). It uses two vertical axis rotating hooks and a sliding bar take up to produce two lines of double lock stitch. Automatic lubrication in combination with the drive belt and plumber pump mechanism ensure smooth and quiet operation. The arm shaft and hook shaft are supported by ball bearings. A knob type stitch regulator and lever type reverse feeding mechanism make the machine easy to operate. The split needle bar can be engaged or disengaged mechanically. A bobbin thread pull back spring in the bobbin case guarantees the synchronization of the needle thread and bobbin thread creating seamless stitching. It can be used to produce overalls, jeans, uniforms and for decorative sewing on bags.
For those seeking additional functions and increased productivity model numbers GC20528-M-D and GC20528-B-D are available as undertrimming machines.
(This machine comes with a table and motor assembled)
| Specification | GC20528-B | GC20528-B-D |
|---|---|---|
| Application | Medium Heavy Weight | Medium Heavy Weight |
| Max. Sewing Speed | 3000 RPM | 3000 RPM |
| Stitch Length | 0 – 7 mm | 0 – 7 mm |
| Needle Bar Stroke | 33.4 mm | 33.4 mm |
| Presser Foot Lift (Hand) | 7 mm | 7 mm |
| Presser Foot Lift (Knee) | 13 mm | 13 mm |
| Needle Type | DB × 5 (#18 – #22) | DB × 5 (#18 – #22) |
| Hook | Large Hook with Bobbin Thread Pull-back | Large Hook with Bobbin Thread Pull-back (Thread Trimming) |
| Lubrication | Auto Lubricated | Auto Lubricated |
| Thread Trimmer | N/A | Yes |
| Motor | 370W Clutch Motor | Speed Adjustment Motor |
| Standard / Optional Gauge | Standard: 6.4 mm Optional: 3.2 / 4 / 4.8 / 5.6 / 8 / 9.5 / 12.7 / 15.8 / 19 mm | Standard: 6.4 mm Optional: 3.2 / 4 / 4.8 / 5.6 / 8 / 9.5 / 12.7 / 15.8 / 19 mm |
- Brand: Highlead
- Viewed: 32
- Availability: In Stock
$1,799.00
