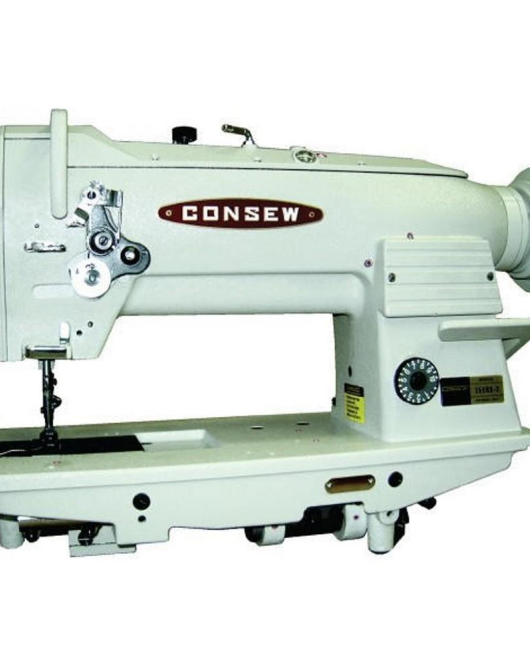

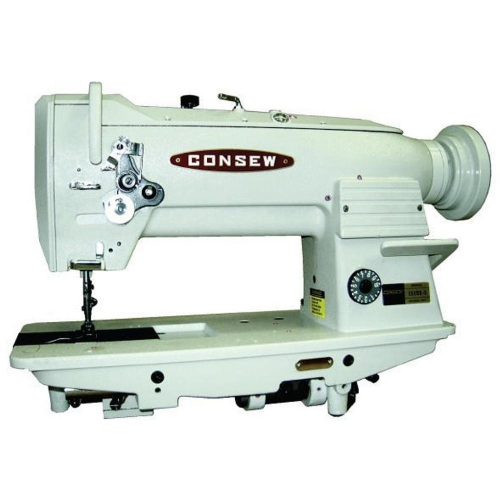

Needle Feed, Heavy Duty, Single Needle, Triple Feed, Drop Feed, Needle Feed, and Alternating (Walking) Presser Feet, Lockstitch Machine
With: Large Bobbin and Vertical Axis Hook, Centra-Lube®, Semi-Automatic Lubrication System, 2 1/2 S.P.I. (10mm) Stitch Length, Reverse Feed, Safety Clutch

Applications

• For sewing light to heavy-weight fabric, canvas, leather, vinyl, synthetics and various laminated and coated materials
• Designed for stitching such products as auto, boat and furniture upholstery, tarpaulins, covers, awnings, tents, umbrellas, handbags, luggage, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, footwear, foundation garments, orthopedic appliances, etc.

Features

• Centra-Lube® semi-automatic lubrication system
• Automatic hook lubrication
• Oil fed take-up
• Large bobbin and vertical axis hook
• Compound feed, walking foot mechanism assures uniform stitching
• Simple wing nut adjustment permits raising and lowering of the center foot to allow for sewing different thicknesses of material
• Safety clutch prevents the hook from being damaged
• Safety-type handwheel
• Stitch length indicator on outside of machine
• All sizes of cording feet available
• Standard attachments easily installed
• Reverse stitching
• Long Stitch - 21/2 SPI (10mm)
• Large bobbin and vertical axis hook and reverse feed and High-lift

Specifications

Number of Needles

1

Feeding Mechanism

Needle Feed

Work Space

Standard Workspace

Standard or Full Function

Standard Functions

Speed, Max (S.P.M.)

3200

Clearance Under Presser Foot

9/16" (14mm)

Stitch Length

4 s.p.i. (5.6mm)

Work Space

10 1/4" (258mm)

Needle Bar Stroke

1 5/16" (33mm)

Needle

Metal 135 x 17

Bobbin

Pre-Wound U

Bed Size

7" x 18 7/8" (177mm x 477mm)

Stitch Type

301

Hook

15040
