One needle large oscillating shuttle hook drop feed with alternating presser foot (7 Class Type) with air foot lifter and air reverse feeding
his extra heavy duty top and bottom feed lockstitch machine comes with a high arm clearance and extra wide bed to make it easy to sew large articles. The large machine pulley helps the machine to attain strong striking power – thus making sewing on multi-layer extra heavy material, whether slippery or gummy simple. The cam thread take up and large shuttle hook with large bobbin capacity mean less down time for bobbin changes. Its extra high foot lift and long needle bar stroke make it the ideal machine in the manufacture of safety belts, webbing, leather trunks, buffing wheels, tents, sails, car covers, book bindings, and similar articles.
| Applications | |
|---|---|
| Extra heavy duty top & bottom feed lock stitch machine dengan high arm clearance dan extra wide bed, memudahkan menjahit material berukuran besar. | |
| Pulley besar memberikan daya pukul kuat sehingga mampu menjahit material multi-layer ekstra tebal, termasuk bahan licin atau lengket. | |
| Cam thread take-up dan shuttle hook besar dengan kapasitas bobbin besar mengurangi frekuensi penggantian bobbin. | |
| Cocok untuk produksi: safety belt, webbing, leather trunks, buffing wheels, tents, sails, car covers, book binding, dan produk heavy-duty lainnya. | |
| Specifications | |
| Max Sewing Speed | 700 RPM |
| Stitch Length | 0 – 15 mm |
| Needle Bar Stroke | 66 mm |
| Presser Foot Lift (Hand) | 29 mm |
| Presser Foot Lift (Knee) | 32 mm |
| Needle Size | SM x 1000 #27 |
| Shuttle Hook | KSP-7-31 |
| Lubrication | Manual |
| Working Space | 15.748" x 7.87402" |
| Motor | 550W Clutch Motor (1400 RPM) |
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder

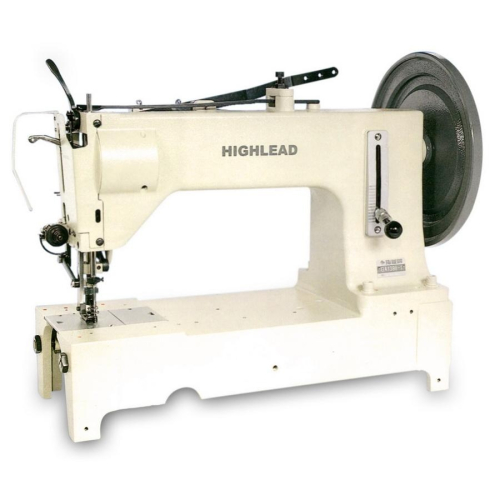

Highlead GA1398-1A Industrial Sewing Machine with Table and Servo Motor
- Product Code: GA1398-1A
One needle large oscillating shuttle hook drop feed with alternating presser foot (7 Class Type) with air foot lifter and air reverse feeding
his extra heavy duty top and bottom feed lockstitch machine comes with a high arm clearance and extra wide bed to make it easy to sew large articles. The large machine pulley helps the machine to attain strong striking power – thus making sewing on multi-layer extra heavy material, whether slippery or gummy simple. The cam thread take up and large shuttle hook with large bobbin capacity mean less down time for bobbin changes. Its extra high foot lift and long needle bar stroke make it the ideal machine in the manufacture of safety belts, webbing, leather trunks, buffing wheels, tents, sails, car covers, book bindings, and similar articles.
| Applications | |
|---|---|
| Extra heavy duty top & bottom feed lock stitch machine dengan high arm clearance dan extra wide bed, memudahkan menjahit material berukuran besar. | |
| Pulley besar memberikan daya pukul kuat sehingga mampu menjahit material multi-layer ekstra tebal, termasuk bahan licin atau lengket. | |
| Cam thread take-up dan shuttle hook besar dengan kapasitas bobbin besar mengurangi frekuensi penggantian bobbin. | |
| Cocok untuk produksi: safety belt, webbing, leather trunks, buffing wheels, tents, sails, car covers, book binding, dan produk heavy-duty lainnya. | |
| Specifications | |
| Max Sewing Speed | 700 RPM |
| Stitch Length | 0 – 15 mm |
| Needle Bar Stroke | 66 mm |
| Presser Foot Lift (Hand) | 29 mm |
| Presser Foot Lift (Knee) | 32 mm |
| Needle Size | SM x 1000 #27 |
| Shuttle Hook | KSP-7-31 |
| Lubrication | Manual |
| Working Space | 15.748" x 7.87402" |
| Motor | 550W Clutch Motor (1400 RPM) |
- Brand: Highlead
- Viewed: 32
- Availability: In Stock
$7,599.00
